7050 Designed & Manufactured MagDrill Stand V7
Custom Bundle For Matthew McSPARRON
1 x 7050 V7 MagDrill Stand in Red Oxide Primer @ £
1 x Parcelforce 48hr Delivery to BT44 0BS @ £
1 x Pair of 7050 Table Clamps @ £
1 x Royal Mail 2nd Class Recorded Delivery @ £
--------------
Total Cost: £
NOTE: PLEASE CHOOSE THE "COLLECT OPTION" @ THE CHECKOUT TO AVOID SYSTEM TRYING TO ADD ADDITIONAL DELIVERY COSTS!!!!!!!
Magnetic Drill Stand, Universal Design, CNC Laser Cut, Broach & Annular Cutting.
Our New 7050 V7 Mag Drill Stand, is approximately 10% Larger than our previous 7050 V5 Stand
We have designed & manufactured this 7050 V7 MagDrill Stand so that users can get more use from their Larger Magnetic Drill that have a larger Magnet footprint.
We are now offering you the chance to buy these professionally designed & built Mag Drill Stands, Direct from us, The Manufactures.
This stand will extend the applications that your Magnetic Drill can be used for on-site or in your workshop.
Ideal for parts that previously could only be drilled in the workshop - they can now be machined on site.
This Stand allows the Magnetic Drill to be used safely as a Bench Drill, with an excellent material clamping option, thus increasing the applications & flexibility of the Magnetic Drill using Broach & Annular Cutters & HSS Drill Bits & Countersunk Bits.
When the Magnetic Drilling machine is set onto the top surface of the table and the electro magnet is switched on, you will have a safe, versatile, stationary drilling machine in next to no time, which is also portable.
The table part of our 7050 V7 Mag Drill Stand is 320mm Diameter and has 2 x 13mm slots & 2 x 13mm holes for use with our Optional Quick Table Clamps for safe clamping of the material being bored.
This 7050 V7 stand has been designed for use with the 2” 50mm Long Annular / Broach Cutters.
The stand features an easy to change/remove “Top Guide Plate”:
Top Plate Info: To suit Rota Broach E40 Mag Drill 90mm x 180mm
Other Features Include:
Innovative Design.
Strong Construction.
Red Oxide Paint Finish.
Quick Clamping Option with our Optional Clamps ( 1 x Pair as Part of this Bundle)
Room for Tray to collect Cutting Fluid.
Stainless Steel Fixings are used throughout.
4 x rubber feet provide a safe platform.
Additional Top Plates will be available as required.
7050 V7 Stand Dimensions (approximate):
Width: 320mm
Depth: 420mm
Height: 220mm
Weight: 27Kg
Rubber Feet: 38mm x 10mm
Table Height: 140mm
Table Diameter: 320mm
Table Hole Size: 80mm
Mag Platform to Table: 90mm
Throat: 100mm
Material: Mild Steel Grade S275 CNC Laser Cut
Fixings: Stainless Steel
Finish: Red Oxide Primer
Delivery:
Next Day Delivery to Uk Mainland Addresses is available @ £30.00
EXCLUDING HIGHLANDS & ISLANDS & Northern Ireland (POA)
International Delivery to USA & Canada & Mainland Europe (POA)
Collection is also available. (By Appointment Only from DD4 0QA
Dispatch:
This item is normally dispatched within 5 - 7 working days.
Custom Options:
We can add additional "Spacer Plates" to increase the "Mag Plate to Table" Dimension from 90mm to 130mm suit your specific MagDrill requirements.
Please give us a call on 07941 757262 to discuss your requirements.
Thanks for looking.

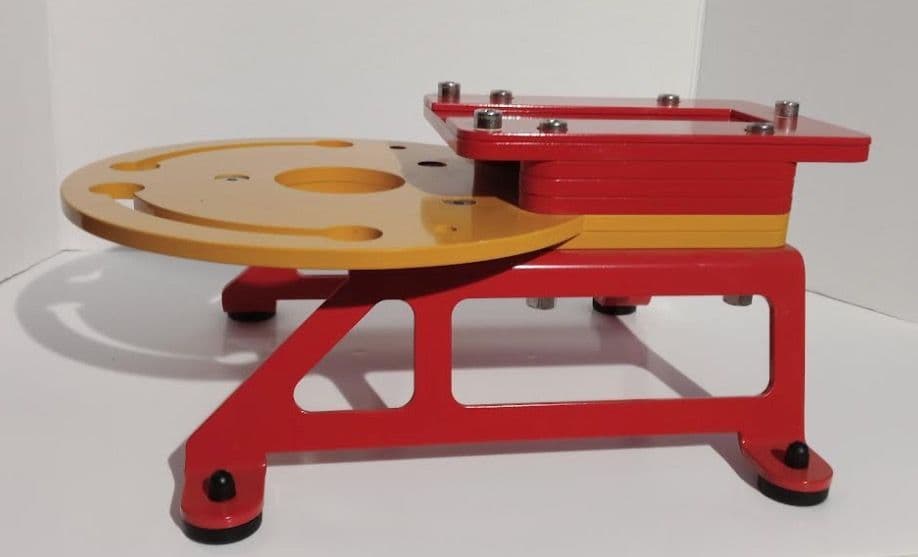

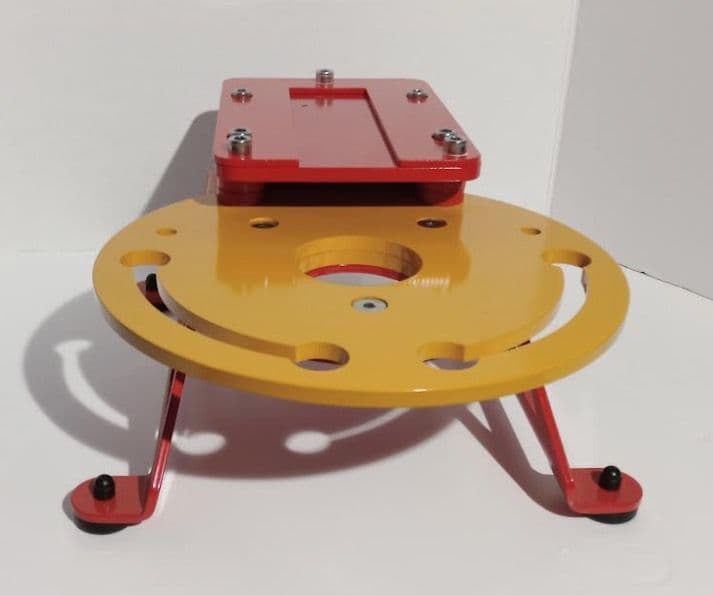

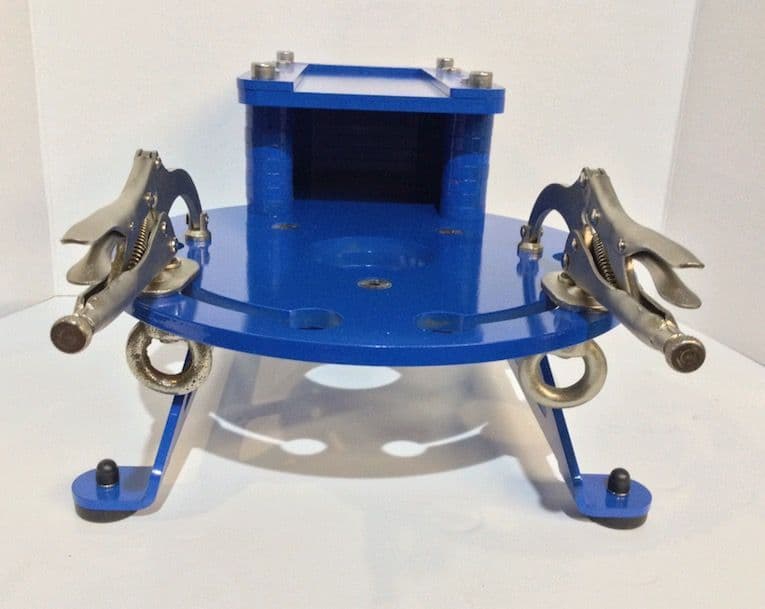

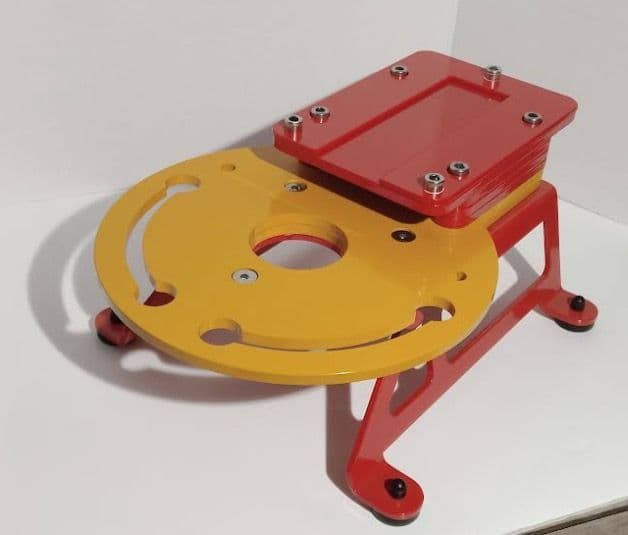

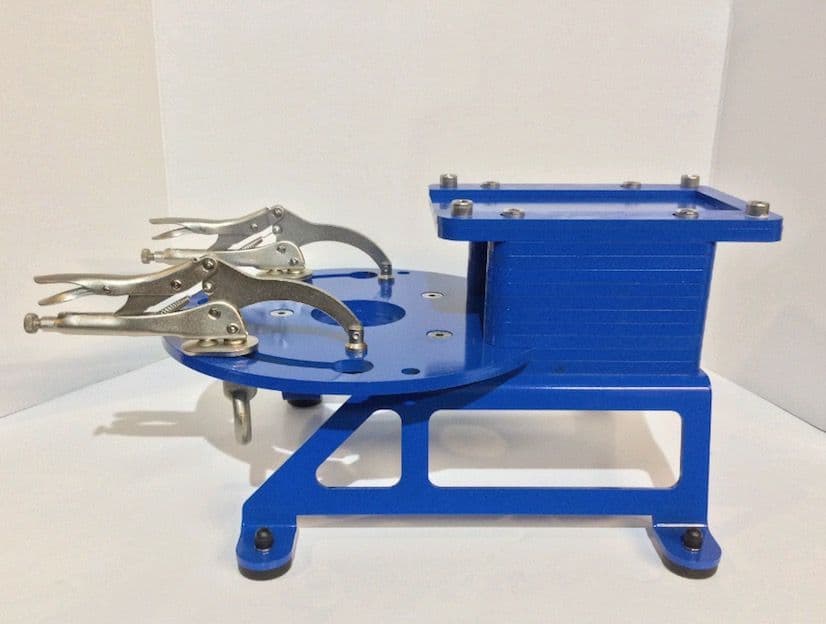

Please Note: Photos show some of the Optional Colours Available.
