Folding Welding Bench

Welding Bench 600x580x6 - Laser Cut + Collect


Welding Bench 600x580x6 - Laser Cut + Collect

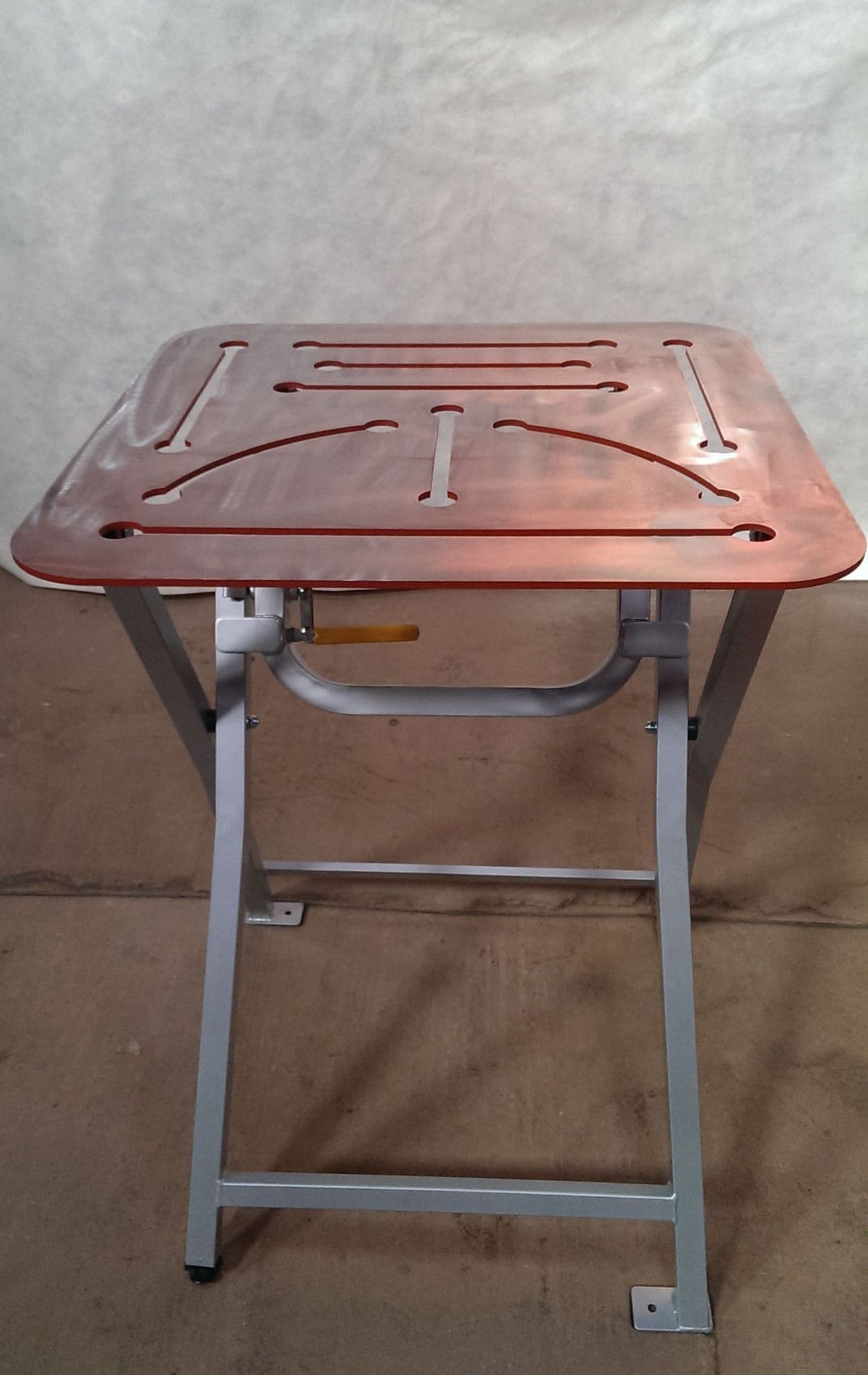

This is the 7050 Folding Mig / Tig / MMA Welding Workbench which is fitted with our Innovative CNC Laser Cut 6mm Welding Plate. Collection from our Workshop @ Tealing, Dundee, DD4 0QA
7050 Folding Workbench + Collection

This Bench is fitted with one of our Innovative CNC Laser Cut Welding Plates, 600mm Wide.

The Welding Plate Measures: 600mm x 580mm x 6mm.

It is Precision Cut using a CNC Laser from New Mild Steel Grade S275

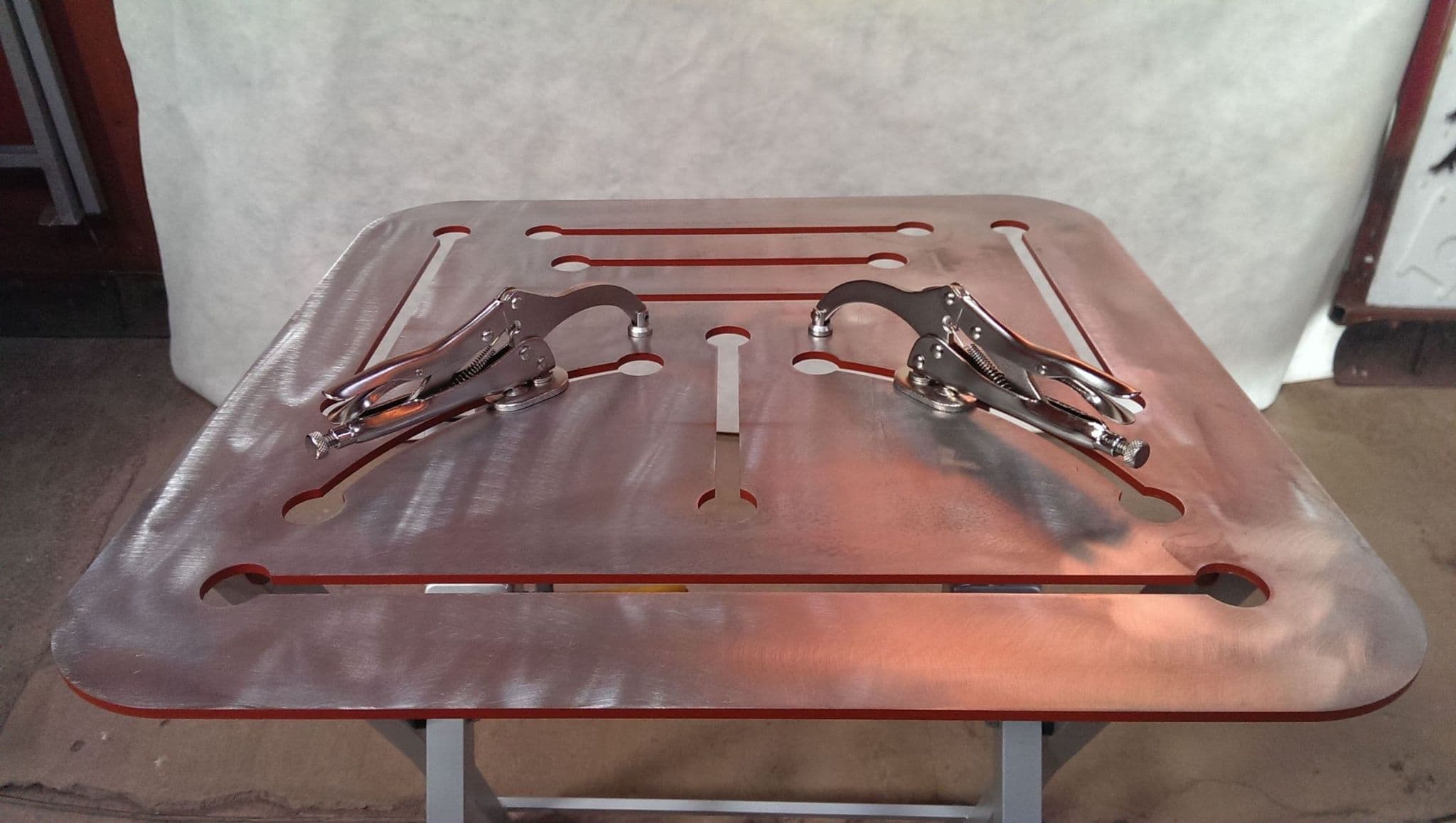

The 9 x slots in the table are 13mm and are perfect for use with ½” Table Clamps (Option) and 12mm Cup Square Bolts. (Option)

The Folding Legs have a silver painted finish & the CNC Laser Cut top is a “Bare Metal Finish” which has been sprayed with WD40. The underside of the plate has been primed with a Red Oxide Primer.

The table is secured in both the folded & working position by a spring-loaded pin operated by the yellow lever in the photos.

Are you struggling to find a decent, low cost strong welding bench, then this is the one for you!

I have produced this very handy Strong Mig / Tig / MMA Welding workbench / Jig using a Custom Made CNC Laser Cut 6mm thick steel plate & a new folding leg assembly, with adjustable foot for leveling on un-even floors.

Just fold it up when not in use, or use as an extra bench/table in your workshop or garage.

This Welders Workbench has hundreds of other uses in your workshop or garage.

Dimensions (Approximate):
Table Dimensions Open:
60cm Wide x 58cm Depth x 87cm High

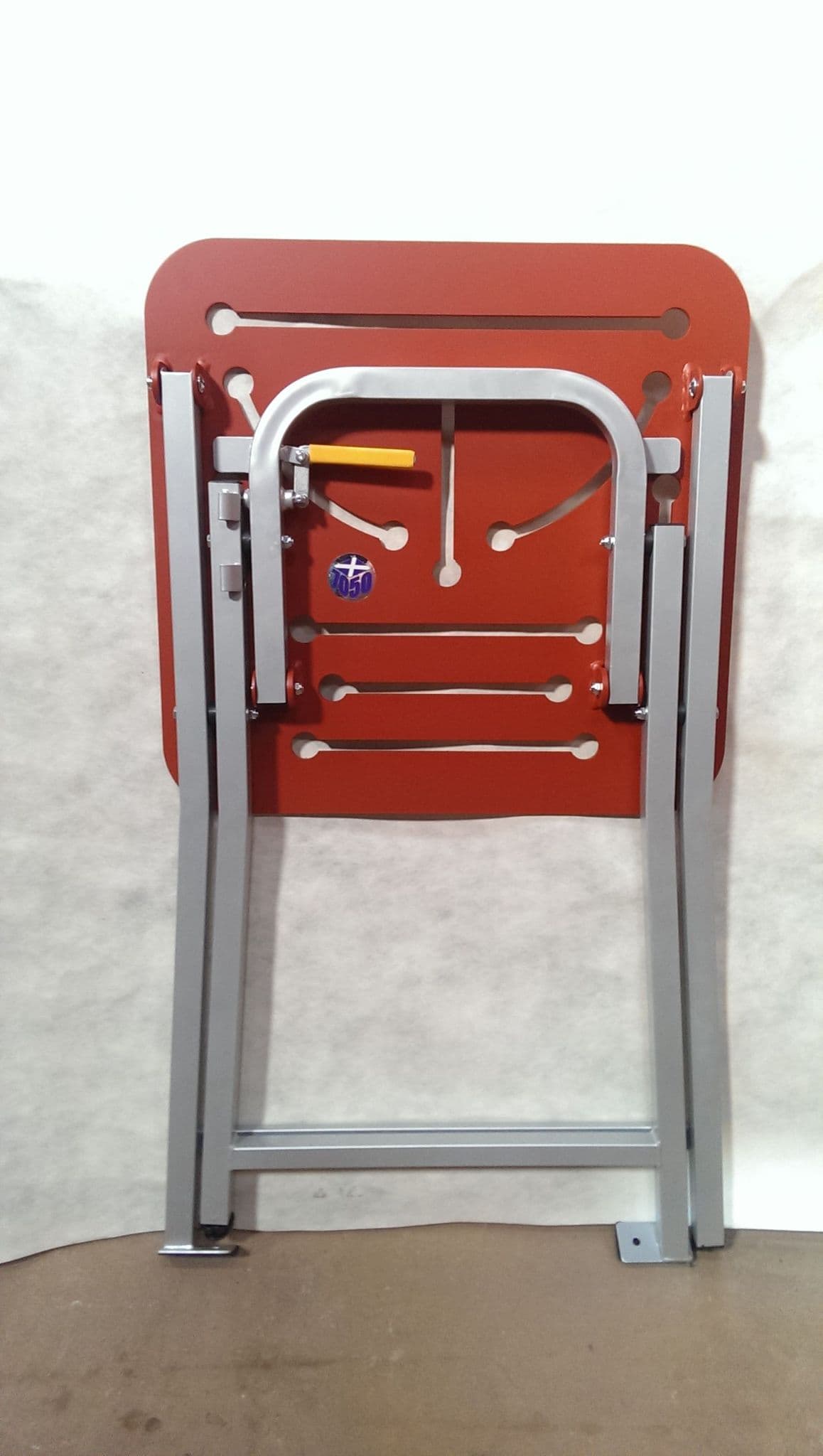

Table Dimensions Folded:
60cm Wide x 7cm Depth x 111cm
Table Capacity: 50kg

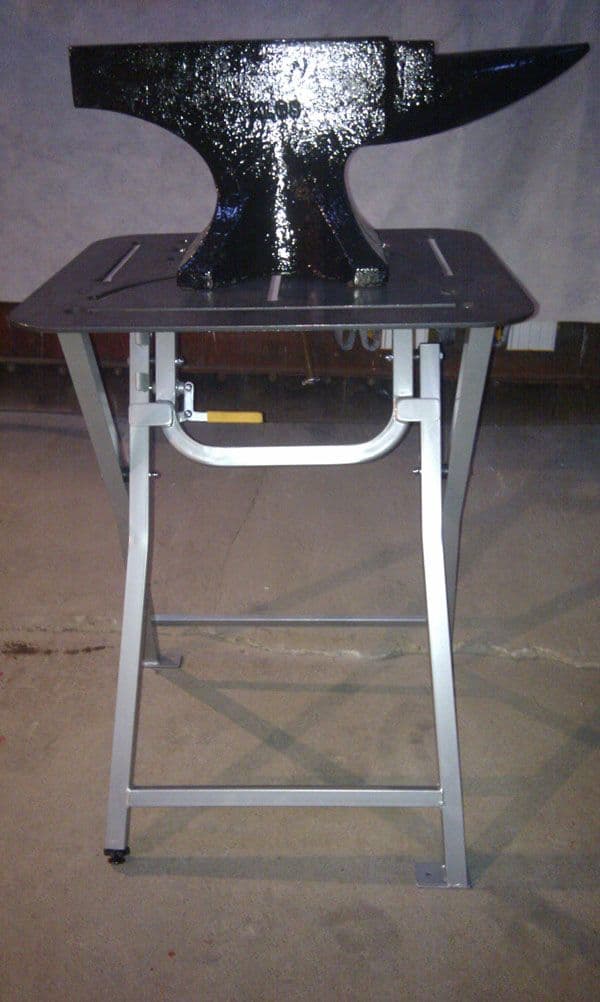

(Tested with a 77kg Anvil)

Table:              22kg

Delivery:     -    This item is for Collection Only from our Workshop.

Payment:     -     We can accept payment by Cash, Paypal or BACS.

Options:     -     Please see our other items for Clamp Options.

1:     This Item is 1 x Folding Welding Bench.
2:     Clamps are Optional.
3:     The "Slot Cut Out Parts" ARE NOT SUPPLIED.
4:     Please supply a contact phone number for our refference.
6:     27kg

Other Sizes of Top Plate are available, Watch for new listings.

  • Brand:
  • Condition:
  • Product Code:
    WBL 600X580X6 Col
Based on 3 review(s)
Write an online review and share your thoughts with other shoppers!
Tam - Edinburgh

Hi all. i bought this bench on ebay.came the next day.not used the table yet but its a lot better than i thought it would be. if you are looking for a work table i would recommend this .thanks Tam

Steve pett - Kent

A very high quality piece of engineering, having looked at other options on the market all of which were more expensive, this is without doubt,I my opinion the very best available.

Frederick - Guernsey

I brought my welding table about 2 weeks ago now and have used it already. I was well impressed with the build quality, its all around design and how practical it was to use. For me its an ideal size and I like that it folds up nicely, and it feels nice and solid. It has a level adjusting screw foot on one leg, I need that in my garage. The mole type clamps that are made for it are excellent and so easy to use. All around I am very pleased with the product and also with the service from, they were very communicative and helpful. Will use them again.
